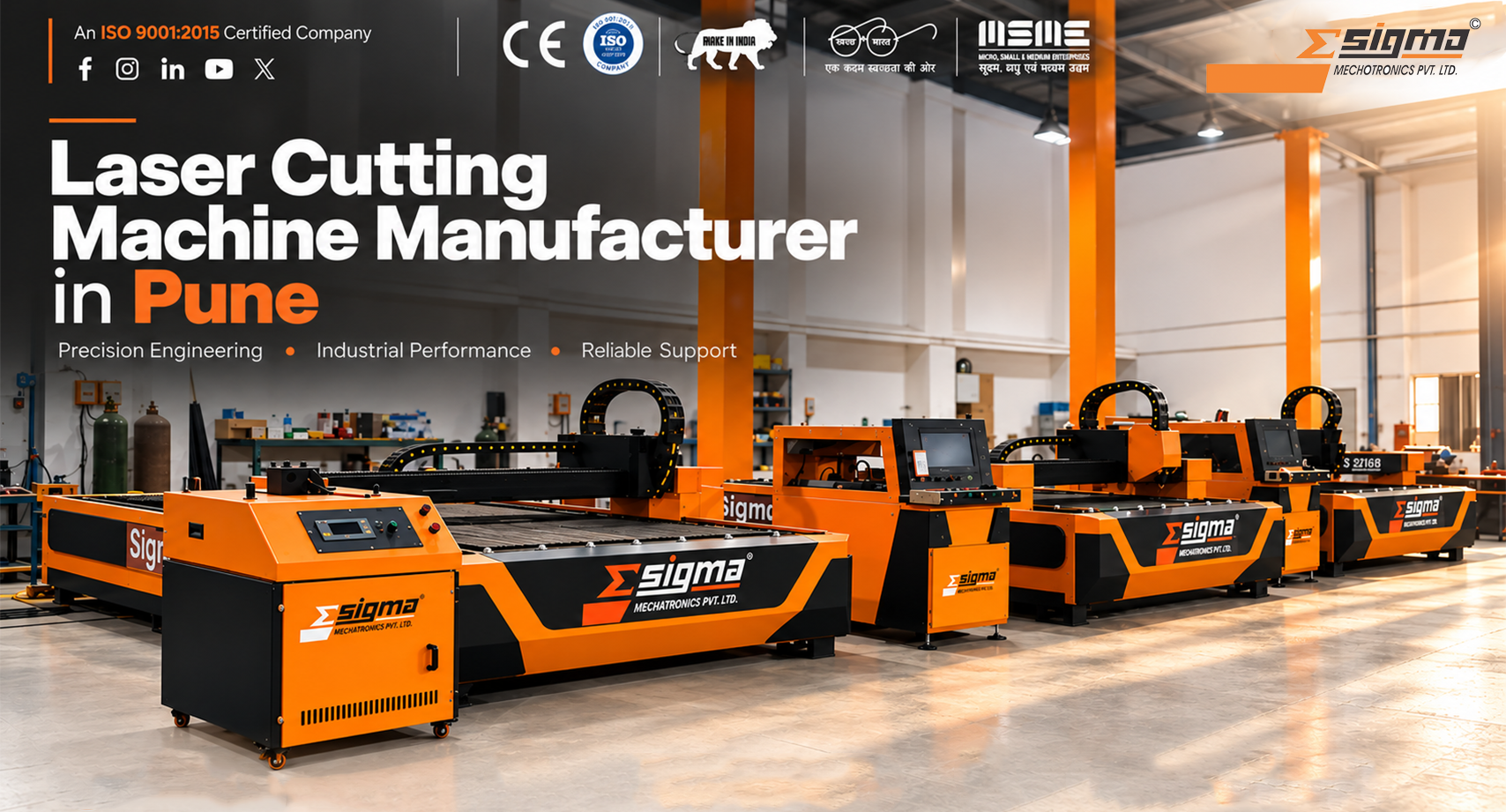

Laser Cutting Machine Manufacturer In Pune
Sigma Mechotronics Pvt. Ltd. is an ISO & CE Certified manufacturer of fiber laser cutting machines, with its head office at Odhav and its manufacturing plant at Bakrol in Ahmedabad. For buyers choosing a laser cutting machine manufacturer in Pune, we design and build fiber laser cutting machines for sheet metal, plate, and pipe and tube cutting, in five configurations for different production needs, and supply them to manufacturers across Pune. Our machines cut mild steel, stainless steel and aluminium, and brass and copper with a cutting head protected against back-reflection.
Our fiber laser cutting machines are available from 1.5 kW to 20 kW, and the dedicated tube machine runs from 1.5 kW to 12 kW. Our own technical team installs the machine at your Pune premises and then trains your operators free of charge for 1 to 7 days. After-sales service is handled directly by our team, without a dealer or agent, and backed by 24/7 support. You can also book a free demo in Pune on a machine we have already installed there, so there is no need to travel to Ahmedabad.
Sigma’s Fiber Laser Cutting Machine Range
In laser cutting, Sigma manufactures only fiber laser cutting machines. The frame, bed and structure of each machine are made at the Ahmedabad plant, the components are selected and integrated by Sigma’s engineers, and every build is inspected stage by stage. The range covers five configurations:
| Configuration | Built For |
|---|---|
| Single pallet, open type | Mixed job work, loaded by hand or crane |
| Auto pallet changer, open type | Repeat batches: one pallet is loaded while the other cuts |
| Close body | Shared floors: enclosed cabin, interlocked doors, built-in dust and fume extraction |
| Flat bed with tube and pipe attachment | Sheet work plus round, square and rectangular tube |
| Dedicated tube cutting machine | Tube, pipe and profiles as the main product |
Flat-bed machines range from 1.5 kW to 20 kW on six standard beds from 3200 x 1600 mm to 6500 x 2500 mm, and a bed can be engineered to your drawing. The tube machine runs from 1.5 kW to 12 kW. See every configuration on Sigma’s laser cutting machines page.
Features That Keep the Machine Cutting
These features decide how much of a shift goes into cutting rather than setting up, and Sigma’s fiber laser cutting machines have them:
- Auto edge finding. The machine locates the sheet’s edge and angle before cutting and aligns the program to it, so nobody squares the sheet by hand.
- Fly cutting. Rows of holes and small shapes are cut in one continuous pass without lifting the head between them, which saves idle travel on perforated and repetitive parts.
- Anti-collision cutting head. The head is protected if it meets a part that has tipped up after cutting, limiting damage and downtime.
- Auto height following. Capacitive sensing holds a constant gap between nozzle and sheet, even on slightly bowed sheet, so focus and cut quality stay consistent.
- Drawing import and nesting. The CNC takes DXF and DWG files and nests parts on the sheet to reduce scrap.
Basic Technical Data
Basic technical data for Sigma’s 1.5 kW fiber laser cutting machine with a 3200 x 1600 mm working table:
| Item | Specification |
|---|---|
| Laser power | 1500 W |
| Wavelength | 1064 nm |
| Working table and working size | 3200 x 1600 mm |
| X-axis travel | 1600 mm |
| Y-axis travel | 3200 mm |
| Z-axis travel | 125 mm |
| Maximum linked speed | 85 m/min |
| Maximum acceleration | 0.5 G |
| X/Y positioning accuracy | ±0.05 mm |
| X/Y repositioning accuracy | ±0.03 mm |
| Maximum load | 1000 kg |
| Machine weight | 3 to 3.5 tonnes (approx.) |
| Power demand | 380 V, up to 16 kW |
Need technical data for your machine power? These figures are for the 1.5 kW machine, and the data changes with laser power and bed size. Message Sigma on WhatsApp today and ask for a quotation: it comes with the full technical details for the power and configuration you need.
Applications: How Pune Manufacturers Use a Fiber Laser
Pune is one of India’s most important automobile and manufacturing hubs, and a fiber laser cutting machine earns its place in that work on:
- Automotive and auto-component parts: brackets, mounting and reinforcement plates, prototype and low-volume parts, and jigs and fixtures.
- Sheet metal fabrication: panels, covers, machine guards and enclosures.
- Electrical panels and switchgear: enclosure blanks and precise cut-outs.
- Machine building: base plates, gussets and frame parts.
- Tube and pipe work: frames, railings and furniture, on a tube attachment or the dedicated tube machine.
The machine cuts mild steel, stainless steel and aluminium as standard, and brass and copper with a cutting head protected against back-reflection.
Why Pune Buyers Choose Sigma
- Built by the manufacturer: frame, bed and structure made at Sigma’s own Ahmedabad plant, with stage inspection during the build.
- Demo in Pune: see a Sigma laser cutting machine working in Pune before you buy, with no trip to Ahmedabad.
- Free installation and commissioning: Sigma’s own team installs the machine at your Pune premises and sets cutting parameters on your material.
- Free operator training: on your machine, with your own jobs.
- Direct after-sales service: handled by Sigma’s own technical team, not a dealer or agent.
- Warranty and spares: a 2-years warranty on manufacturing defects, annual maintenance contracts after that, and critical spares held in India.
- Custom engineering: a bed engineered to your drawing when a standard size does not fit.
- Registered and certified: ISO & CE Certified, MSME and GST Registered, with a GST tax invoice under your GSTIN.
Read more on how Sigma builds and supports its machines.
Serving Manufacturers Across Pune
Sigma supplies its fiber laser cutting machines to manufacturers across Pune. Wherever your unit is, installation, operator training and after-sales service take place at your own premises, carried out by Sigma’s technical team.
Book a Machine Demo in Pune
You do not need to travel to Ahmedabad to see a Sigma machine cut. Sigma has already installed a laser cutting machine in Pune and can arrange a demo there, so you can watch it run before you decide.
Common Mistakes When Choosing a Laser Cutting Machine Manufacturer in Pune
- Not asking who builds the machine. A manufacturer that makes the frame and integrates the machine can engineer a custom bed and commission it with its own team.
- Comparing technical data across different powers. Speed, acceleration and power demand change with laser power and bed size, so compare quotations for the same configuration.
- Comparing quotations on price alone. Check that installation, training, warranty and service are written into each one.
Frequently Asked Questions
Do I need to visit Ahmedabad to see Sigma’s laser cutting machine?
No. Sigma’s machines are built at its plant in Ahmedabad, but Sigma can arrange a demo in Pune on a laser cutting machine it has already installed there. Installation, training and service also take place at your own Pune premises.
Does Sigma install and service laser cutting machines in Pune?
Yes. Installation and operator training at your Pune premises are free and carried out by Sigma’s own technical team, which also handles after-sales service directly, backed by a 2-year warranty on manufacturing defects.
What features do Sigma’s fiber laser cutting machines have?
They have auto edge finding, fly cutting, an anti-collision cutting head and auto height following, and the CNC imports DXF and DWG drawings and nests parts on the sheet.
What is the basic technical data of Sigma’s 1.5 kW laser cutting machine?
It has a 3200 x 1600 mm working table, 1064 nm wavelength, 85 m/min maximum linked speed, 0.5 G acceleration, and X/Y positioning accuracy of ±0.05 mm with ±0.03 mm repositioning accuracy. For other laser powers, ask for the data and a quotation on WhatsApp.
How do I get the price of a fiber laser cutting machine in Pune?
Message Sigma on WhatsApp at +91 99090 26467 with your material, thickness, sheet size and the laser power you need. Sigma will send a quotation with the full technical details for that configuration.
Final Thoughts
The right laser cutting machine manufacturer for a Pune unit builds the machine it sells, shares clear technical data, and installs, trains and services it at your site. Choose the configuration for the work you cut every week, confirm the features you rely on, and ask for the technical data at the laser power you actually need.
Talk to Sigma About Your Pune Requirement
Tell Sigma your material, thickness, part size and production volume so the suitable machine configuration can be discussed. Installation and operator training at your premises are free, and a demo can be arranged in Pune.
Call or WhatsApp +91 99090 26467 or email info@sigmalaser.in
